This is a Strain Gage based, single ended Shear Beam Load Cell. Intended for use in platform scales, tank and hopper weighing systems. It is constructed from alloy tool Steel. The Cell is sealed against moisture ingression for use in wash-down areas and it is Electroless Nickel plated for corrosion resistance. It is low cost ideal Load Cell for industrial automation applications.
As a renowed and leading Adi Load Cell 30310 manufacturer, supplier and dealer in India we have supply and manufacture Adi Load Cell 30310 in various cities and states of India such as, Mumbai, Pune, Nagpur, Gujarat, Hyderabad, Ahmedabad, Vadodara, Surat, New Delhi, Bangalore, Andhra Pradesh, etc. and exporting other countries like Malaysia, China, Korea and Soudi Arabia.

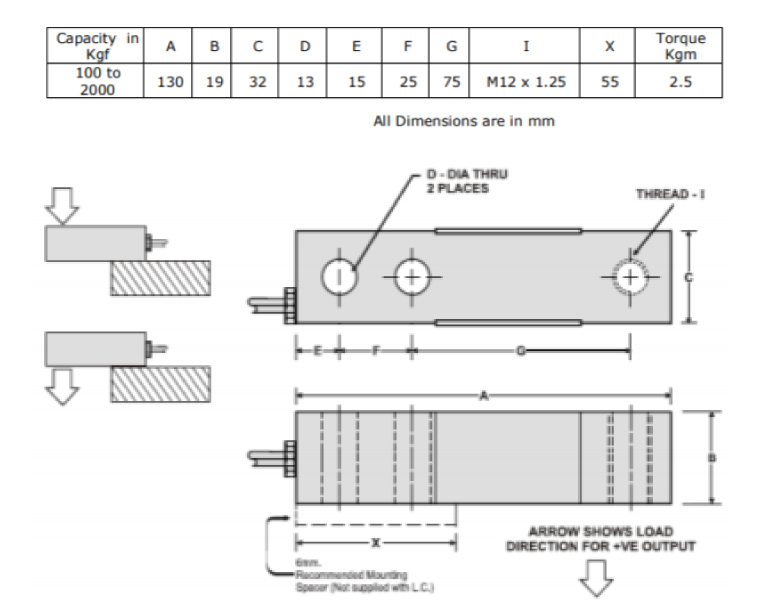

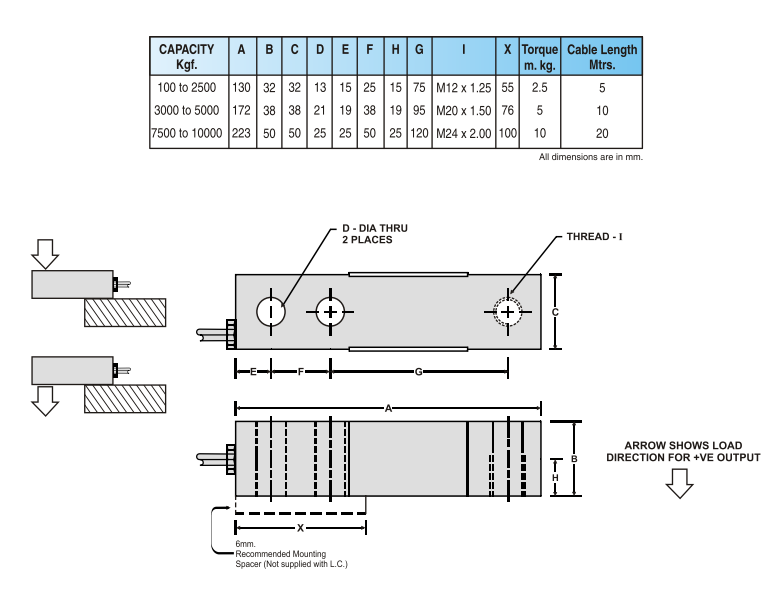

| Red | Excitation + |
| Black | Excitation - |
| Green | Signal + |
| Yellow | Signal - |
| Performance Specification | |
|---|---|
| Standard Capacities | 100*, 150*, 200*, 300,500*, 750 - Kgf 1, 1.5, 2, 2.5, 3, 5, 7.5, 10 - Tf |
| Excitation Voltage | 10 VDC- Maximum 15 VDC |
| Nominal Output | 3.0 m V/ V |
| Non - Linearity | < ±0.025% FSO |
| Non - Linearity | < ±0.025% FSO |
| Hysteresis | < ±0.02% FSO |
| Non-Repeatability | < ±0.01% FSO |
| Creep (30 minutes) | < ±0.03% FSO |
| Zero Balance | ±1.0% FSO |
| Input Resistance | 390 ± 3.5 Ohms |
| Output Resistance | 350 ± 3.5 Ohms |
| Insulation Resistance (50 VDC) | > 1000 Mega Ohms |
| Cable Length (4 Core Screened) | 5 mtr. Minimum |
| Safe Overload of Rated Capacity | 150% |
| Ultimate Overload of Rated Capacity | 300% |
| Side Load Discrimination | 500 : 1 |
| Temp. Compensated Range | 0-60 0C |
| Deflection | < 0.5 mm at FSO |
| Tightening Torque | See table below. |
| Finish & Construction | 803 - Electroless Nickel Plated Tool Steel |
| Environmental Protection Class | IP67. |
| Load (Kg) | A | B | C | D | E | F | d1 | M |
|---|---|---|---|---|---|---|---|---|
| 500 ~ 2000 | 130 | 31.8 | 54.5 | 16.1 | 25 | 77.2 | 13 | M12 x 1.75 |
| 2500 ~ 5000 | 172 | 38 | 74.5 | 19.7 | 38 | 95.2 | 21 | M20 x 2.5 |
