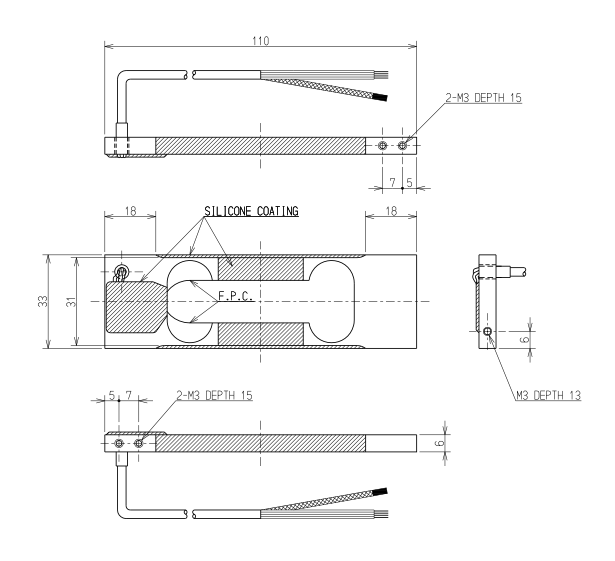

Model NMB BCL Series is a Strain Gage based low profile bending beam Miniature Load Cell and is ideal for Table Top & Jewellery Scales. It is designed for low eccentric load sensitivity. It is provided with mechanical over load & under load protection mechanism.
As a renowed and leading Nmb Load Cell Dealer, distributor, supplier and exporter in India we have supply and exported nmb Load Cell in various cities and states of India such as, Mumbai, Pune, Nagpur, Gujarat, Hyderabad, Ahmedabad, Vadodara, Surat, New Delhi, Bangalore, Andhra Pradesh, etc. and exporting other countries like Malaysia, China, Korea and Soudi Arabia.
| Red | Excitation + |
| Black | Excitation - |
| Green | Signal + |
| Yellow | Signal - |
| Performance Specification | |
|---|---|
| Rated Capacity | 2.942 N (300 gf), 5.884 N (600 gf), 11.77 N (1.2 Kgf), 14.71 N (1.5 Kgf), 29.42 N (3 Kgf), 44.13 N (4.5 Kgf) |
| Safe Over load | 150% R.C |
| Ultimate Over load | 200% R.C |
| Rated Output (R.O) | 1.6 mv/v- 0.2 mv/v |
| Non linearity | 0.2% R.O |
| Hysteresis | 0.2% R.O |
| Repeatability | 0.2% R.O |
| Creep | 0.2% R.O / 20 min |
| Creep recovery | 0.2% R.O / 20 min |
| Input resistance | 400 Ω ~ 450 Ω |
| Output resistance | 345 Ω ~ 355 Ω |
| Insulation resistance | 2 000 MΩ or more(DC50 V) |
| Temp. range, compensated | -10 0 ~ 50 0 |
