Model ADI 1810 is a Strain Gage based low profile bending beam Load cell and is ideal for precision single point platform scale applications. It is designed for low eccentric load sensitivity. This supports large platform Size of 1 mtr. x 1 mtr. It is constructed from tool steel for heavy shock loads.
| Red | Excitation + |
| Black | Excitation - |
| Green | Signal + |
| Yellow | Signal - |
| Performance Specification | |
|---|---|
| Standard Capacities | 500, 750, 1000, 1500, 2000, 3000 Kgf |
| Excitation Voltage | 10 VDC- Maximum 15 VDC |
| Nominal Output | 2.0 mV/ V |
| Non - Linearity | < ±0.025% FSO |
| Hysteresis | < ±0.025% FSO |
| Non-Repeatability | < ±0.01% FSO |
| Creep (30 minutes) | < ±0.03% FSO |
| Zero Balance | ±1.0% FSO |
| Input Resistance | 400 ± 15 Ohms |
| Output Resistance | 350 ± 5 Ohms |
| Safe Overload of Rated Capacity | 150% |
| Ultimate Overload of Rated Capacity | 200% |
| Temp. Compensated Range | 0-60 0C |
| Temperature Effect on Output | < 0.0015% FSO/ 0C |
| Temperature Effect on Zero | < 0.0020% FSO/ 0C |
| Platter Size | 1000mm |
| Tightening Torque | 1.5 m.kg. |
| Finish & Construction | Alloy Steel |
| Environmental Protection Class | IP65 |

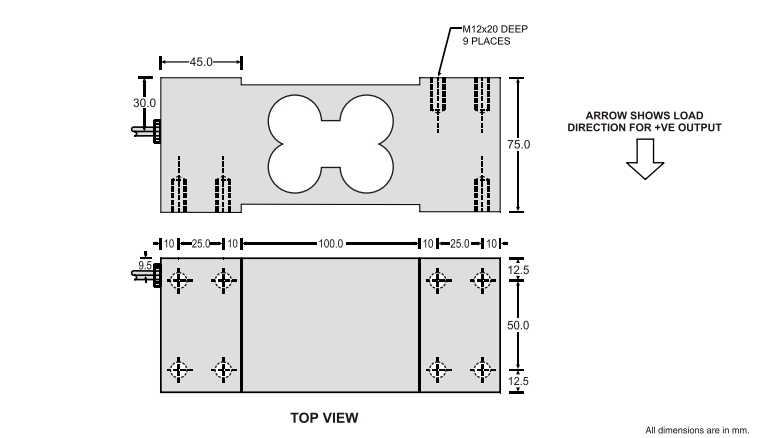

Dimension (mm) : Size: 190x75x75(mm) Thread hole: M12
