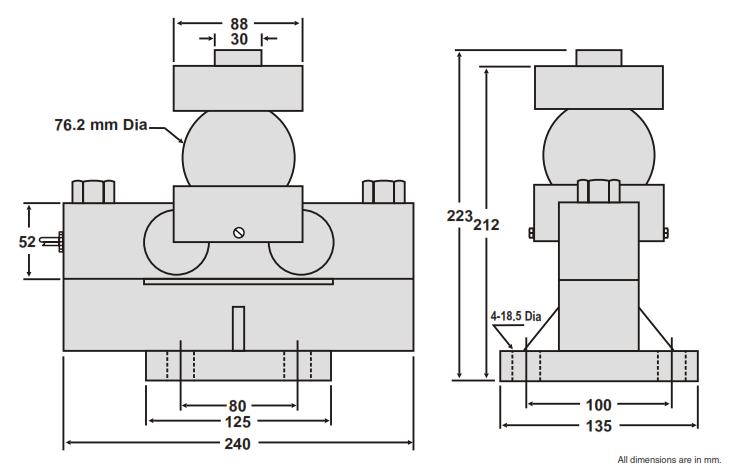

Model Keli QS - A double ended shear beam Load Cell is ideally suited for truck, track, tank and hopper weighing applications. From its nickel exterior protection to its triple-seal gage area, this cell is designed to withstand the rigorous of harsh environmental conditions.
As a renowed and leading Keli Load Cell supplier, dealer and distributor in India we have supply and distributed Keli Load Cell in various cities and states of India such as, Mumbai, Pune, Nagpur, Gujarat, Hyderabad, Ahmedabad, Vadodara, Surat, New Delhi, Bangalore, Andhra Pradesh, etc. and exporting other countries like Malaysia, China, Korea and Soudi Arabia.
| Red | Excitation + |
| Black | Excitation - |
| Green | Signal + |
| Yellow | Signal - |
| Performance Specification | |
|---|---|
| Standard Capacities | 5, 10, 20, 30, 40, 50 T |
| Excitation Voltage | 10 VDC- Maximum 15 VDC |
| Nominal Output | 3.0 mV/ V |
| Non - Linearity | < ±0.025% FSO |
| Hysteresis | < ±0.02% FSO |
| Non-Repeatability | < ±0.01% FSO |
| Creep (30 minutes) | < ±0.03% FSO |
| Zero Balance | ±1.0% FSO |
| Input Resistance | 770 ± 20 Ohms |
| Output Resistance | 700 ± 7 Ohms |
| Insulation Resistance (50VDC) | > 1000 Mega Ohms |
| Safe Overload of Rated Capacity | 150% |
| Ultimate Overload of Rated Capacity | 300% |
| Temp. Compensated Range | 0-60 0C |
| Temperature Effect on Output | < 0.0015% FSO/ 0C |
| Temperature Effect on Zero | < 0.0020% FSO/ 0C |
| Finish & Construction | Electroless Nickel Plated Tool Steel |
| Environmental Protection Class | IP68 |
