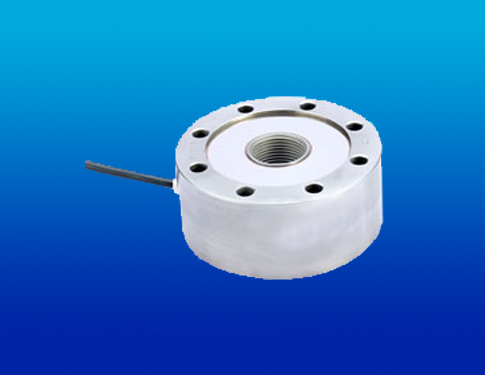

We are one of the leading pancake loadcell manufacturer in mumbai, India. 90610-T pancake universal load Cells are suitable for weigh bridge,tank and hopper weighing applications. This is constructed from heat treated stainless steel suitable for harsh and hygenic industrial applications. It is hermetically sealed and it has long life. Extremely suitable for tank,silos level monitoring. 90610-T is available with integral thread.
As a renowed and leading Pancake Load Cell manufacturer, supplier and dealer in India we have supply and manufacture Pancake Load Load Cell in various cities and states of India such as, Mumbai, Pune, Nagpur, Gujarat, Hyderabad, Ahmedabad, Vadodara, Surat, New Delhi, Bangalore, Andhra Pradesh, etc. and exporting other countries like Malaysia, China, Korea and Saudi Arabia.
| Red | Excitation + |
| Black | Excitation - |
| Green | Signal + |
| Yellow | Signal - |
50 Kgf to 500 Kgf Capacities.
Complete environmental protection - IP68 class.
Standard output 2.0 m V/V available. Hardened stainless steel construction.
Miniature and low profile.
Easy for installation.
Custom built design available on request.
Tank level measurement
Weighbridge
Tank, Silo and hopper weighing
Tensile testing and automation
Force and impact test
Low profile floor scale
| Performance Specification | |
|---|---|
| Standard Capacities | 50,100,200,500 KGF. 1, 2, 3, 5, 10, 20, 30, 50 Tf. |
| Excitation Voltage | 10VDC-Maximum 15VDC |
| Nominal Output | 2.0 mV/V |
| Non - Linearity | <±0.1% FSO |
| Hysteresis | <±0.1% FSO |

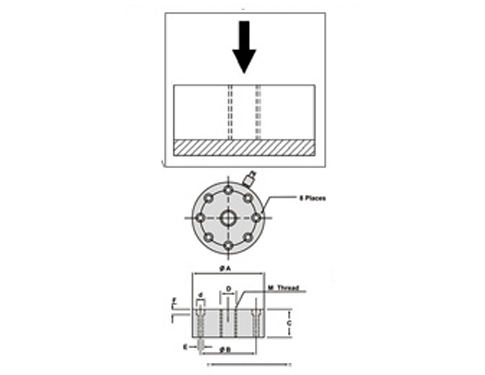

| CAPACITY Tf | A | B | C | D | E | F | M Thread |
|---|---|---|---|---|---|---|---|
| 50 Kg - 1T | 50 | 42 | 23 | 8 | 4.2 | 4.5 | 12 X 1.25 |
| 2T - 5T | 90 | 70 | 35.5 | 10 | 6.5 | 6.5 | 16 X 1.5 |
| 10T - 20T 115 | 90 | 47.5 | 13 | 8.5 | 30 X 2 | 30 X 2 | 30 X 2 |
| 30T - 50T 155 | 125 | 74.5 | 18 | 12.5 | 39 X 2 | 39 X 2 | 39 X 2 |
