70510 Pin Load Cels are used where pins or large bolts would generally be carrying the load. Typically this will include shackle pin, clevis pins & pulley shafts. This is constructed from heat treated stainless steel, suitable for food industries & harsh corrosive environment. Load pin is provided with slot for keeper plate for load directions, anti rotations & retaining purposes.
| Red | Excitation + |
| Black | Excitation - |
| Green | Signal + |
| Yellow | Signal - |
Available in capacity of 0.5 to 400 Tf, higher capacity available on request.
Standard output 1.0mV/V
Meets complete environment protection IP 65 class.
Optional IP 67 available on request.
Elevator, Hoist & Crane Load monitor
Tow bar Connection
Rail road coupling
Rope/Cable tension measurement by inserting as D-Shackle pin
Front end Loader
Process & Automation

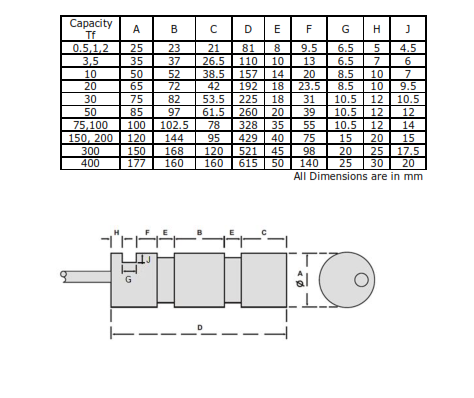

| PERFORMANCE SPECIFICATION | |
|---|---|
| Standard Capacity Tf | 0.5,1,2,3,5,10,20,30,50,,75,100,150,200,300,400 |
| Excitation Voltage | 10 VDC- Maximum 15 VDC |
| Nominal Output | 1.0 m V/ V |
| Non - Linearity | < ±0.5% FSO (Full Scale Output) |
| Hysteresis | < ±0.3% FSO |
| Non-Repeatability | < ±0.2% FSO |
| Creep (30 minutes) | < ±0.10% FSO |
| Zero Balance | ±1.0% FSO |
| Input Resistance | 770 ± 20 Ohms |
| Output Resistance | 700 ± 5 Ohms |
| Insulation Resistance (50 VDC) | > 1000 Mega Ohms |
| Cable Length (4 Core Screened) | 5 Meters |
| Safe Overload of Rated Capacity | 100% |
| Ultimate Overload of Rated Capacity | 200% |
| Temp. Compensated Range | 0-60 0C |
| Temperature Effect on Output | < 0.005% FSO/ 0C |
| Temperature Effect on Zero | < 0.005% FSO/ 0C |
| Deflection | < 0.4 mm at FSO |
| Finish & Construction | Stainless Steel 17 – 4 PH |
| Environmental Protection Class | Meets IP 65 |
