Weighing Scale / CZL 642

Description :-

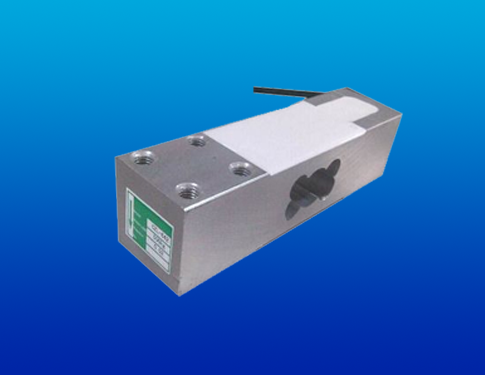

This is a Strain Gage based low profile bending beam Load cell for platform size of 600 x 600 (mm). It is an economical cell for smaller size low profile platform scales. It is off center load compensated and is rugged to take shock loads.

Wiring Scheme :-
Red Excitation +
Black Excitation -
Green Signal +
Yellow Signal -
Performance Specification
Standard Capacities 100, 200 , 300, 400, 500 Kgf
Excitation Voltage 10 VDC- Maximum 15 VDC
Nominal Output 2.0 mV/ V
Non - Linearity < ±0.025% FSO
Hysteresis < ±0.02% FSO
Non-Repeatability < ±0.01% FSO
Creep (30 minutes) < ±0.03% FSO
Zero Balance ±1.0% FSO
Input Resistance 400 ± 15 Ohms
Output Resistance 350 ± 5 Ohms
Insulation Resistance (50 VDC) > 1000 Mega Ohms
Cable Length (4 Core Screened) 500 mm. Minimum
Safe Overload of Rated Capacity 150%
Ultimate Overload of Rated Capacity 200%
Temp. Compensated Range 0-60 0C
Temperature Effect on Output < 0.0015% FSO/ 0C
Temperature Effect on Zero < 0.0020% FSO/ 0C
Platter Size 600mm X 600mm
Tightening Torque 1.5 m.kg.
Finish & Construction Aluminium
Environmental Protection Class IP65

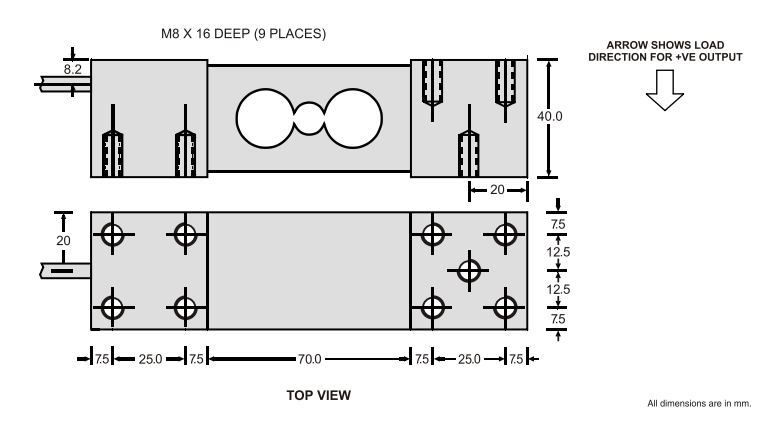

Dimension (mm) : Size: 150x40x40(mm) Thread hole: M8
