Weighing Scale / 1410

Description :-

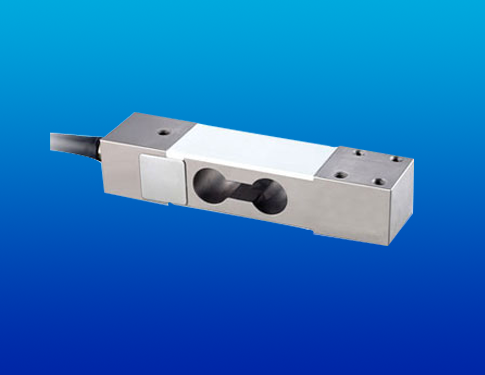

Model CZL 646D / 1410 is a Strain Gage based low profile bending beam Load Cell and is ideal for precision single point platform scale applications. It is designed for eccentric load sensitivity. Its tool steel Construction is very rugged to withstand shock loads. It is also Provided in Hardnable Stainless Steel - 17-4 PH construction.

Wiring Scheme :-
Red Excitation +
Black Excitation -
Green Signal +
Yellow Signal -
Performance Specification
Standard Capacities 200 , 300, 500, 750, 1000, 1500 Kgf
Excitation Voltage 10 VDC- Maximum 15 VDC
Nominal Output 2.0 mV/ V
Non - Linearity < ±0.025% FSO
Hysteresis < ±0.02% FSO
Non-Repeatability < ±0.01% FSO
Creep (30 minutes) < ±0.03% FSO
Zero Balance ±1.0% FSO
Input Resistance 400 ± 15 Ohms
Output Resistance 350 ± 5 Ohms
Insulation Resistance (50 VDC) > 1000 Mega Ohms
Cable Length (4 Core Screened) 500 mm. Minimum
Safe Overload of Rated Capacity 150%
Ultimate Overload of Rated Capacity 200%
Temp. Compensated Range 0-60 0C
Temperature Effect on Output < 0.0015% FSO/ 0C
Temperature Effect on Zero < 0.0020% FSO/ 0C
Platter Size 750mm X 750mm
Tightening Torque 1.5 m.kg.
Finish & Construction Alloy Steel
Environmental Protection Class IP65

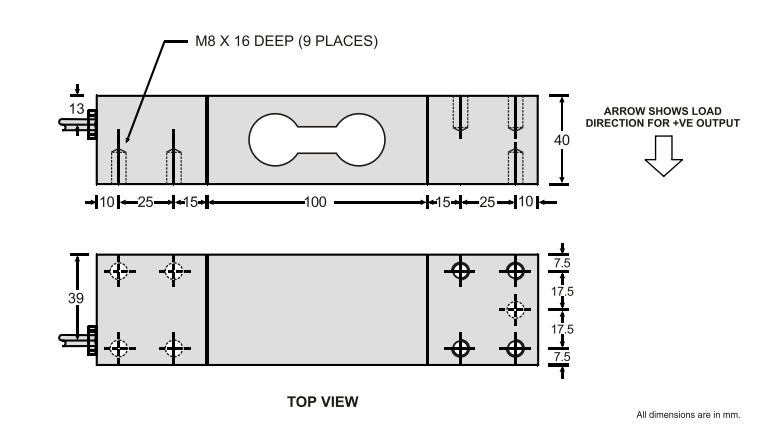

Dimension (mm) : Size: 200x50x40(mm) Thread hole: M8
